前言
最近 CNCF 宣布 rook 毕业，kubeSphere 正好也发布了 3.0.0 版本，由于 rancher 开源的 longhorn 还处于孵化阶段，不太适合生产环境使用，这次使用 rook 作为 kubeSphere 底层存储快速搭建一个生产可用的容器平台。
sealos 简介

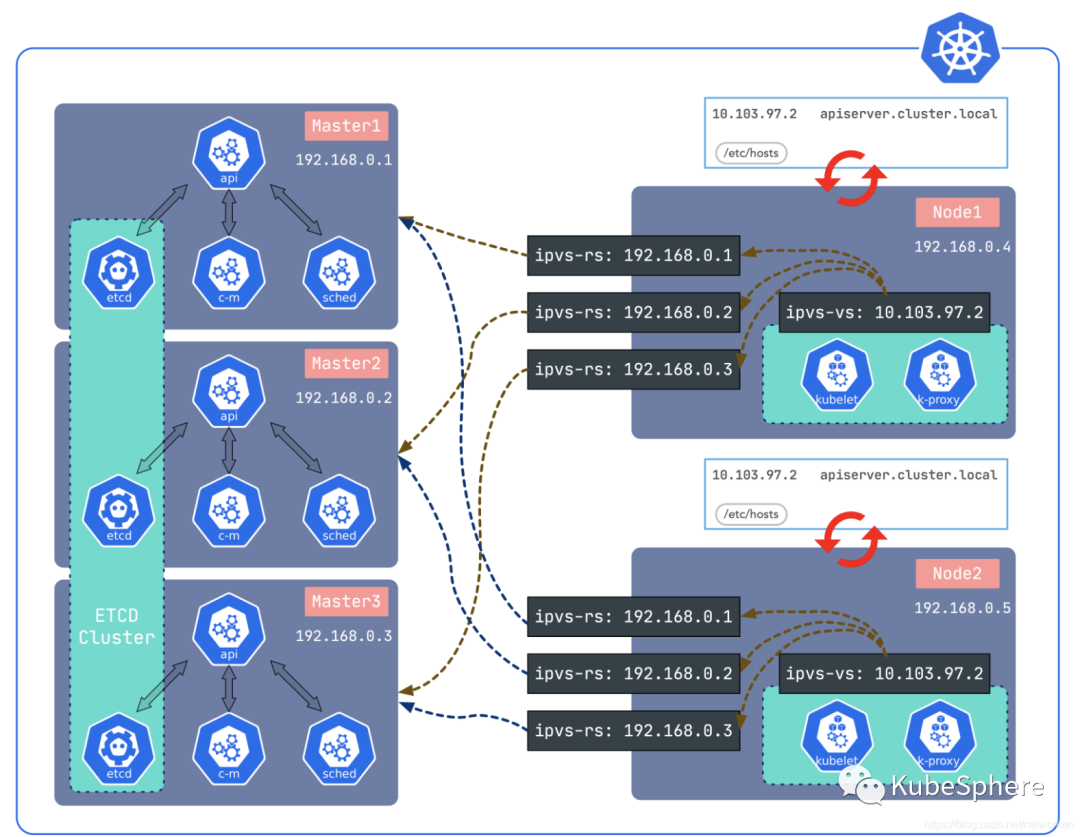

Sealos[1]官方描述：只能用丝滑一词形容的 Kubernetes 高可用安装工具，一条命令，离线安装，包含所有依赖，内核负载不依赖 haproxy keepalived，纯 Golang 开发，99 年证书，支持 v1.16 ~ v1.19。

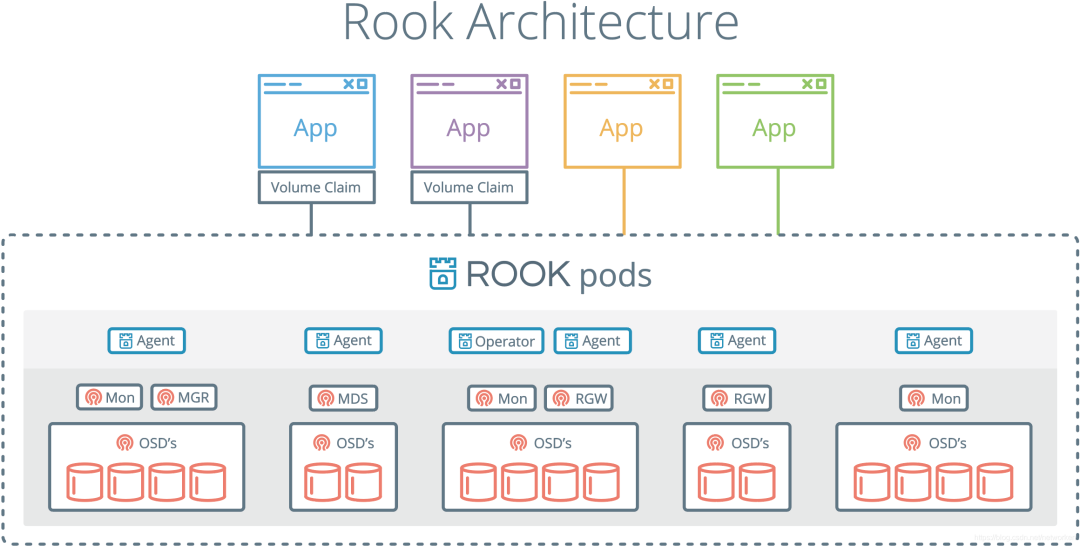

rook 简介
rook[2]是 Kubernetes 的开源云原生存储解决方案，能够为 kubernetes 提供生产就绪的文件、块和对象存储。
值得一提的是 ceph 官方最新的部署工具 cephadm 默认也使用容器来部署 ceph 集群了。
kubeSphere 简介

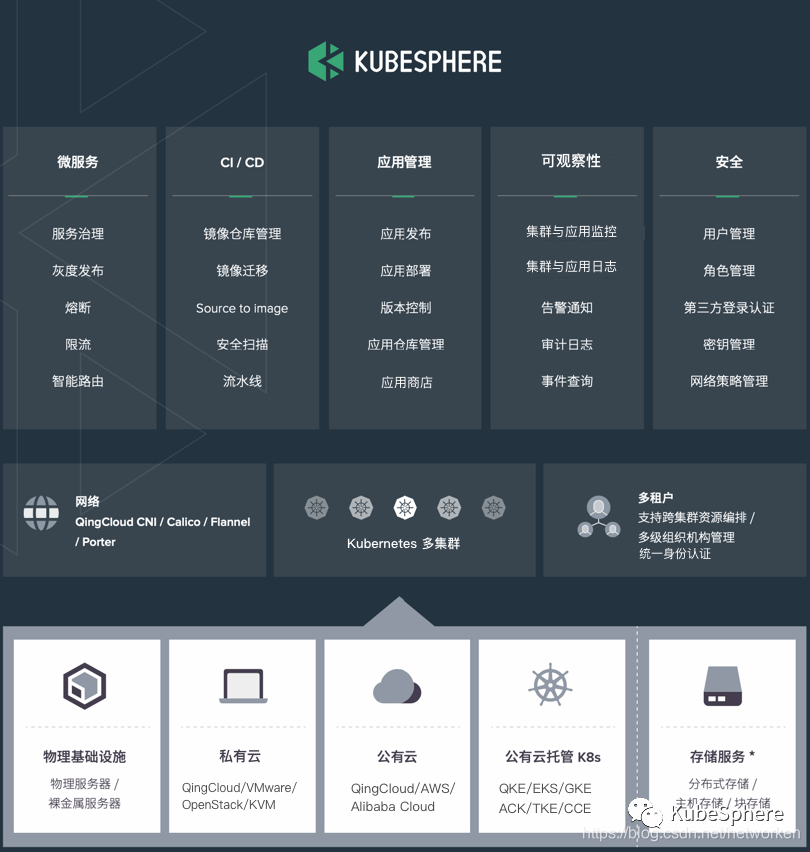

KubeSphere[3]是在 Kubernetes 之上构建的以应用为中心的多租户容器平台，完全开源免费，支持多云与多集群管理，提供全栈的 IT 自动化运维的能力，简化企业的 DevOps 工作流。KubeSphere 提供了运维友好的向导式操作界面，帮助企业快速构建一个强大和功能丰富的容器云平台。
部署环境准备
准备以下节点资源：
| 节点名称 | 节点 IP | CPU | 内存 | 系统盘 | 数据盘 | 存储盘 | 操作系统 |
|---|---|---|---|---|---|---|---|
| k8s-master1 | 192.168.1.102 | 2 核 | 8G | vda: 60G | vdb: 200G | - | CentOS7.8 minimal |
| k8s-master2 | 192.168.1.103 | 2 核 | 8G | vda: 60G | vdb: 200G | - | CentOS7.8 minimal |
| k8s-master3 | 192.168.1.104 | 2 核 | 8G | vda: 60G | vdb: 200G | - | CentOS7.8 minimal |
| k8s-node1 | 192.168.1.105 | 4 核 | 16G | vda: 60G | vdb: 200G | vdc：200G | CentOS7.8 minimal |
| k8s-node2 | 192.168.1.106 | 4 核 | 16G | vda: 60G | vdb: 200G | vdc：200G | CentOS7.8 minimal |
| k8s-node3 | 192.168.1.107 | 4 核 | 16G | vda: 60G | vdb: 200G | vdc：200G | CentOS7.8 minimal |

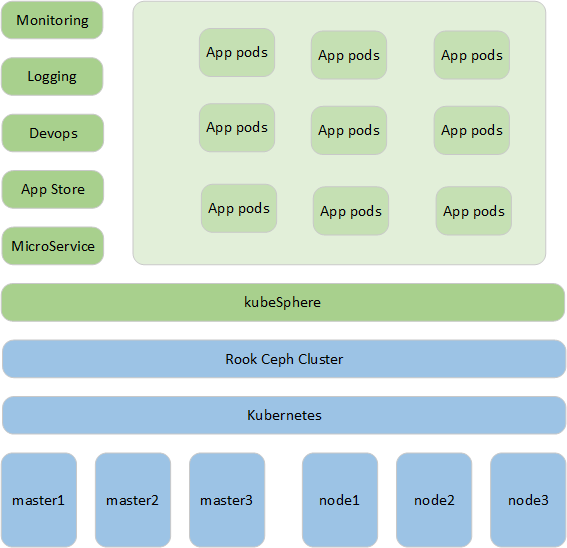

部署示意图
说明：
- vdb 盘：/var/lib/docker 作为镜像及容器数据存储目录建议单独挂盘，创建为逻辑卷方便扩容。另外/var/lib/kubelet 存储了 pod 临时卷，如果临时卷用量较大也建议使用单独存储（可选）。
- vdc 盘：使用 rook 作为 kubesphere 容器平台底层存储，3 数据副本的 ceph 集群每个节点至少需要 1 个 OSD，每个 OSD 位于 3 个不同的节点上，与 longhorn 不同，rook 只能使用干净的裸盘或分区，所以在每个 node 上添加一块 vdc 盘。
所有节点 vdb 整盘创建为逻辑卷，挂载到/var/lib/docker 目录下，用于存储 docker 数据（可选）：
yum install -y lvm2
pvcreate /dev/vdb
vgcreate data /dev/vdb
lvcreate -l 100%VG -n docker data
mkfs.xfs /dev/data/docker
mkdir /var/lib/docker
echo "/dev/mapper/data-docker /var/lib/docker xfs defaults 0 0" >> /etc/fstab
mount -a
后续扩展容量只需将磁盘加入 data 卷组即可。
验证挂载正常
[root@k8s-master1 ~]# df -h | grep docker
/dev/mapper/data-docker 200G 33M 200G 1% /var/lib/docker
vdc 盘保留为裸盘用于 rook 组建 ceph 集群的 osd 盘，请勿做任何分区格式化操作，磁盘最终状态如下:
[root@k8s-master1 ~]# lsblk -f
NAME FSTYPE LABEL UUID MOUNTPOINT
vda
└─vda1 ext4 ca08d7b9-ded5-4935-882f-5b12d6efb14f /
vdb LVM2_member cPhOii-QPw5-85Vs-UFSH-aJV1-rq0D-4883rX
└─data-docker xfs c32b7a2c-b1f6-4e5f-b422-39dc68c0d9aa /var/lib/docker
vdc
部署 k8s 集群
使用 sealos 工具部署 k8s 集群，所有节点必须配置独立主机名，并确认节点时间同步：
hostnamectl set-hostname xx
yum install -y chrony
systemctl enable --now chronyd
timedatectl set-timezone Asia/Shanghai
验证所有节点时间是否同步
timedatectl
在第一个 master 节点操作，下载部署工具及离线包（kubesphere v3.0.0 请使用 kubernetes v1.18.x 版本，务必确认 kubesphere 支持的 kubernetes 版本范围）
# 下载sealos
wget -c https://sealyun.oss-cn-beijing.aliyuncs.com/latest/sealos && \
chmod +x sealos && mv sealos /usr/bin
# 下载kubernetes v1.18.8离线包
wget -c https://sealyun.oss-cn-beijing.aliyuncs.com/cd3d5791b292325d38bbfaffd9855312-1.18.8/kube1.18.8.tar.gz
执行以下命令部署 k8s 集群，passwd 为所有节点 root 密码
sealos init --passwd 123456 \
--master 192.168.1.102 \
--master 192.168.1.103 \
--master 192.168.1.104 \
--node 192.168.1.105 \
--node 192.168.1.106 \
--node 192.168.1.107 \
--pkg-url kube1.18.8.tar.gz \
--version v1.18.8
确认 k8s 集群已经就绪：
[root@k8s-master1 ~]# kubectl get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
k8s-master1 Ready master 5m57s v1.18.8 192.168.1.102 <none> CentOS Linux 7 (Core) 3.10.0-1127.18.2.el7.x86_64 docker://19.3.0
k8s-master2 Ready master 5m28s v1.18.8 192.168.1.103 <none> CentOS Linux 7 (Core) 3.10.0-1127.18.2.el7.x86_64 docker://19.3.0
k8s-master3 Ready master 5m27s v1.18.8 192.168.1.104 <none> CentOS Linux 7 (Core) 3.10.0-1127.18.2.el7.x86_64 docker://19.3.0
k8s-node1 Ready <none> 4m34s v1.18.8 192.168.1.105 <none> CentOS Linux 7 (Core) 3.10.0-1127.18.2.el7.x86_64 docker://19.3.0
k8s-node2 Ready <none> 4m34s v1.18.8 192.168.1.106 <none> CentOS Linux 7 (Core) 3.10.0-1127.18.2.el7.x86_64 docker://19.3.0
k8s-node3 Ready <none> 4m34s v1.18.8 192.168.1.107 <none> CentOS Linux 7 (Core) 3.10.0-1127.18.2.el7.x86_64 docker://19.3.0
[root@k8s-master1 ~]# kubectl get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system calico-kube-controllers-84445dd79f-ntnf2 1/1 Running 0 5m50s
kube-system calico-node-6dnfd 1/1 Running 0 5m39s
kube-system calico-node-8gxwv 1/1 Running 0 4m45s
kube-system calico-node-b28xq 1/1 Running 0 4m45s
kube-system calico-node-k2978 1/1 Running 0 4m45s
kube-system calico-node-rldns 1/1 Running 0 5m50s
kube-system calico-node-zm5dl 1/1 Running 0 4m57s
kube-system coredns-66bff467f8-jk8h5 1/1 Running 0 5m50s
kube-system coredns-66bff467f8-n8hsn 1/1 Running 0 5m50s
kube-system etcd-k8s-master1 1/1 Running 0 5m59s
kube-system etcd-k8s-master2 1/1 Running 0 5m33s
kube-system etcd-k8s-master3 1/1 Running 0 5m26s
kube-system kube-apiserver-k8s-master1 1/1 Running 0 5m59s
kube-system kube-apiserver-k8s-master2 1/1 Running 0 5m34s
kube-system kube-apiserver-k8s-master3 1/1 Running 0 4m12s
kube-system kube-controller-manager-k8s-master1 1/1 Running 1 5m59s
kube-system kube-controller-manager-k8s-master2 1/1 Running 0 5m38s
kube-system kube-controller-manager-k8s-master3 1/1 Running 0 4m18s
kube-system kube-proxy-2lr22 1/1 Running 0 4m45s
kube-system kube-proxy-4m78t 1/1 Running 0 4m57s
kube-system kube-proxy-jzrc9 1/1 Running 0 5m50s
kube-system kube-proxy-kpwnn 1/1 Running 0 4m45s
kube-system kube-proxy-lw5bq 1/1 Running 0 4m45s
kube-system kube-proxy-rl2g5 1/1 Running 0 5m39s
kube-system kube-scheduler-k8s-master1 1/1 Running 1 5m59s
kube-system kube-scheduler-k8s-master2 1/1 Running 0 5m33s
kube-system kube-scheduler-k8s-master3 1/1 Running 0 4m7s
kube-system kube-sealyun-lvscare-k8s-node1 1/1 Running 0 4m43s
kube-system kube-sealyun-lvscare-k8s-node2 1/1 Running 0 4m44s
kube-system kube-sealyun-lvscare-k8s-node3 1/1 Running 0 3m24s
部署 rook 存储
下载 rook 的 release 版本
wget https://github.com/rook/rook/archive/v1.4.4.tar.gz
tar -zxvf v1.4.4.tar.gz
cd rook-1.4.4/cluster/examples/kubernetes/ceph
由于 kubesphere 部分 pod 会调度到 master 节点并且需要绑定 pv，所以需要开启 rook 的 csi-rbdplugin pod 对 master 节点的容忍，使 csi 插件也能够调度到 master 节点，否则那部分 pod 挂载 volume 会失败。（也可以去除 master 节点污点，但不推荐 master 运行过多其他 pod）
查看 master 节点 taints：
[root@k8s-master1 ceph]# kubectl describe nodes k8s-master1 | grep Taints
Taints: node-role.kubernetes.io/master:NoSchedule
取消 operator.yaml 以下部分注释，并将 key 后面的 controlplane 改为 master
[root@k8s-master1 ceph]# vim operator.yaml
CSI_PLUGIN_TOLERATIONS: |
- effect: NoSchedule
key: node-role.kubernetes.io/master
operator: Exists
- effect: NoExecute
key: node-role.kubernetes.io/etcd
operator: Exists
执行以下 yaml 部署 rook
kubectl create -f common.yaml
kubectl create -f operator.yaml
kubectl create -f cluster.yaml
确认所有 pod 运行正常
[root@k8s-master1 ceph]# kubectl -n rook-ceph get pods
NAME READY STATUS RESTARTS AGE
csi-cephfsplugin-9qcvs 3/3 Running 0 22m
csi-cephfsplugin-c8mb4 3/3 Running 0 20m
csi-cephfsplugin-fcrzv 3/3 Running 0 22m
csi-cephfsplugin-pmjqn 3/3 Running 0 20m
csi-cephfsplugin-provisioner-598854d87f-l26qc 6/6 Running 0 21m
csi-cephfsplugin-provisioner-598854d87f-zm2jt 6/6 Running 0 21m
csi-cephfsplugin-srz2x 3/3 Running 0 22m
csi-cephfsplugin-swh5g 3/3 Running 0 20m
csi-rbdplugin-2cgr9 3/3 Running 0 20m
csi-rbdplugin-4jxpc 3/3 Running 0 22m
csi-rbdplugin-bd68x 3/3 Running 0 22m
csi-rbdplugin-fbs6n 3/3 Running 0 20m
csi-rbdplugin-jvz47 3/3 Running 0 22m
csi-rbdplugin-k98qz 3/3 Running 0 21m
csi-rbdplugin-provisioner-dbc67ffdc-hvfln 6/6 Running 0 21m
csi-rbdplugin-provisioner-dbc67ffdc-sh5db 6/6 Running 0 21m
rook-ceph-crashcollector-k8s-node1-6d79784c6d-fsvxm 1/1 Running 0 3h2m
rook-ceph-crashcollector-k8s-node2-576785565c-9dbdr 1/1 Running 0 3h3m
rook-ceph-crashcollector-k8s-node3-c8fc68746-8dp7f 1/1 Running 0 3h3m
rook-ceph-mgr-a-845ff64bf5-ldhf2 1/1 Running 0 3h2m
rook-ceph-mon-a-64fd6c646f-prt9x 1/1 Running 0 3h4m
rook-ceph-mon-b-55fd7dc845-ndhtw 1/1 Running 0 3h3m
rook-ceph-mon-c-6c4469c6b4-s7s4m 1/1 Running 0 3h3m
rook-ceph-operator-667756ddb6-s82sj 1/1 Running 0 3h8m
rook-ceph-osd-0-7c57558cf-rf7ql 1/1 Running 0 3h2m
rook-ceph-osd-1-58cb86f47f-75rgr 1/1 Running 0 3h2m
rook-ceph-osd-2-76b9d45484-qw6l2 1/1 Running 0 3h2m
rook-ceph-osd-prepare-k8s-node1-z4k9r 0/1 Completed 0 126m
rook-ceph-osd-prepare-k8s-node2-rjtkp 0/1 Completed 0 126m
rook-ceph-osd-prepare-k8s-node3-2sbkb 0/1 Completed 0 126m
rook-ceph-tools-7cc7fd5755-784tv 1/1 Running 0 113m
rook-discover-77m2c 1/1 Running 0 3h8m
rook-discover-97svb 1/1 Running 0 3h8m
rook-discover-cr48w 1/1 Running 0 3h8m
ceph 会自动发现节点上的空磁盘并将其创建为 ceph OSD，可以看到 node 节点上的 vdc 被创建为 lvm 类型的磁盘：
[root@k8s-node1 ~]# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
vda 253:0 0 60G 0 disk
└─vda1 253:1 0 60G 0 part /
vdb 253:16 0 200G 0 disk
└─data-docker 252:0 0 200G 0 lvm /var/lib/docker
vdc 253:32 0 200G 0 disk
└─ceph--96e1e8fb--8677--4276--832b--5a9b6ba6061e-osd--data--dc184518--da34--42fb--9100--c56c3d880f19 252:1 0 200G 0 lvm
运行 ceph 命令行工具
[root@k8s-master1 ceph]# kubectl create -f toolbox.yaml
#进入toolbox pod
kubectl -n rook-ceph exec -it $(kubectl -n rook-ceph get pod -l "app=rook-ceph-tools" -o jsonpath='{.items[0].metadata.name}') -- bash
确认 ceph 集群状态为 HEALTH_OK，所有 OSD 盘 up
[root@rook-ceph-tools-7cc7fd5755-784tv /]# ceph status
cluster:
id: a5552710-4d29-4717-90ae-f3ded597225e
health: HEALTH_OK
services:
mon: 3 daemons, quorum a,b,c (age 69m)
mgr: a(active, since 13m)
osd: 3 osds: 3 up (since 69m), 3 in (since 69m)
data:
pools: 1 pools, 1 pgs
objects: 0 objects, 0 B
usage: 3.0 GiB used, 597 GiB / 600 GiB avail
pgs: 1 active+clean
[root@rook-ceph-tools-7cc7fd5755-784tv /]# ceph osd status
ID HOST USED AVAIL WR OPS WR DATA RD OPS RD DATA STATE
0 k8s-node3 1027M 198G 0 0 0 0 exists,up
1 k8s-node2 1027M 198G 0 0 0 0 exists,up
2 k8s-node1 1027M 198G 0 0 0 0 exists,up
创建块存储类型的存储池和 storageclass
[root@k8s-master1 ceph]# kubectl create -f csi/rbd/storageclass.yaml
设置为默认 storageclass
kubectl patch storageclass rook-ceph-block -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"true"}}}'
确认 rook-ceph-block 为默认 storageclass (default)
[root@k8s-master1 ceph]# kubectl get sc
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
rook-ceph-block (default) rook-ceph.rbd.csi.ceph.com Delete Immediate true 58s
登录 ceph dashboard
默认已经创建了 dashboard service，但是类型为 clusterIP，重新创建一个 NodePort 类型的 service
[root@k8s-master1 ceph]# kubectl apply -f dashboard-external-https.yaml
[root@k8s-master1 ceph]# kubectl -n rook-ceph get service | grep dashboard
rook-ceph-mgr-dashboard ClusterIP 10.110.146.141 <none> 8443/TCP 72m
rook-ceph-mgr-dashboard-external-https NodePort 10.107.93.204 <none> 8443:31318/TCP 36s
获取 dashboard admin 用户的密码
kubectl -n rook-ceph get secret rook-ceph-dashboard-password -o jsonpath="{['data']['password']}" | base64 --decode && echo

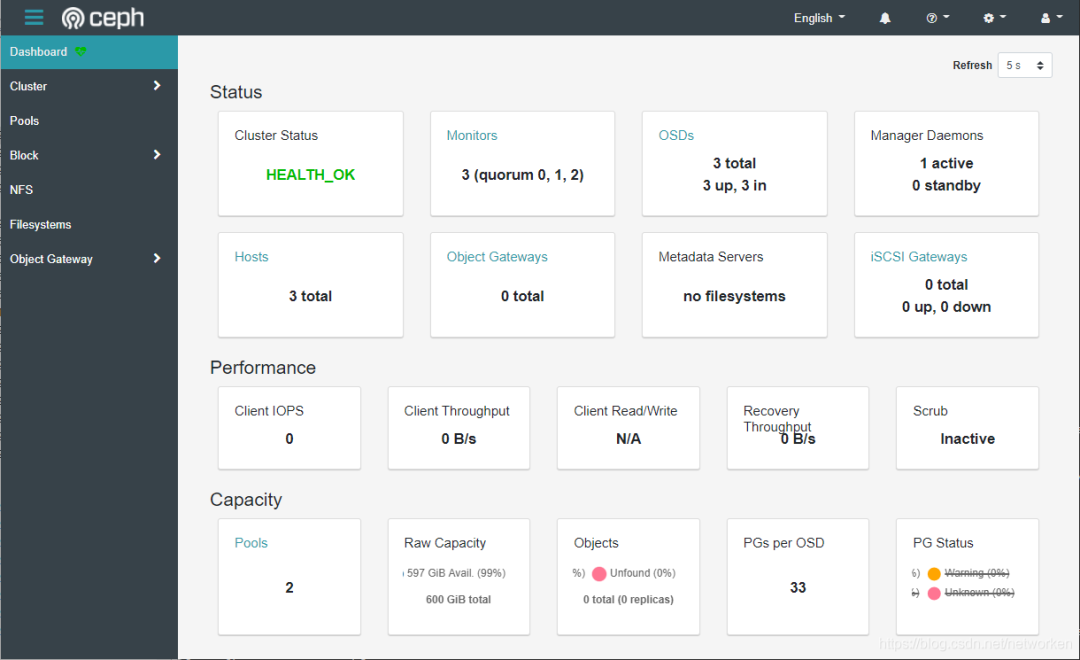

登录后查看 ceph 集群整体状态

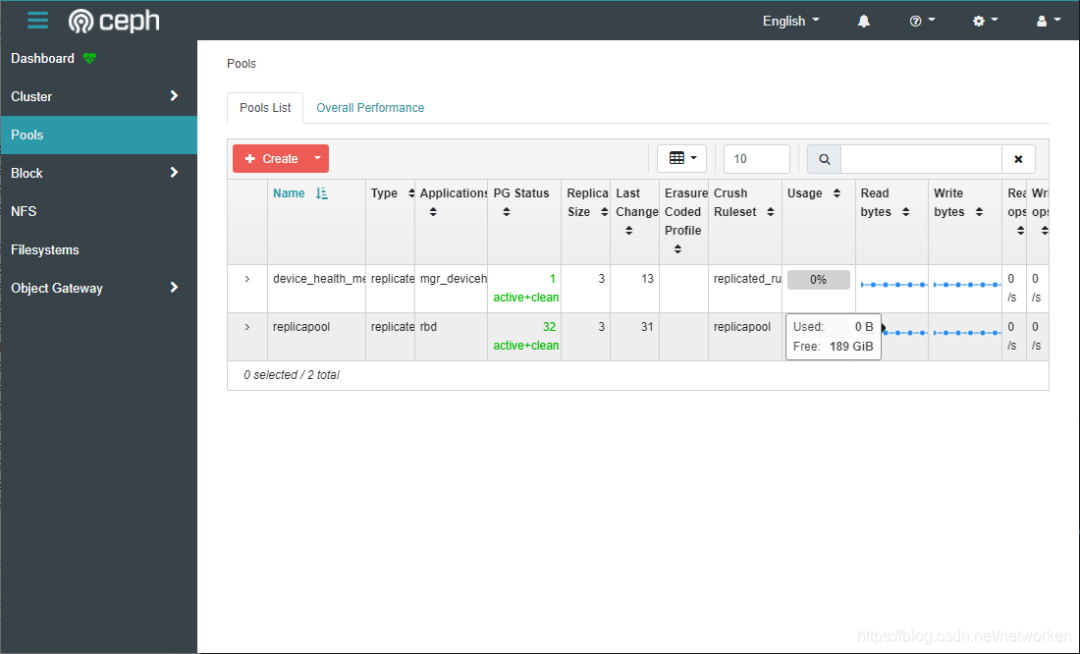

点击 Pools，可以看到创建的 replicapool 存储池，点击 Usage 查看下大小，由于是 3 副本，实际可用存储大概 200G，后续所有调用 rook-ceph-block 这个 storageclass 创建的 pv，数据都会存储在这个存储池内
默认的 storageclass 就绪后可以继续部署 kubesphere 容器平台。
部署 kubeSphere
参考：https://kubesphere.com.cn/en/docs/installing-on-kubernetes/[4]
部署 kubesphere 3.0 版本，下载 yaml 文件
wget https://raw.githubusercontent.com/kubesphere/ks-installer/v3.0.0/deploy/kubesphere-installer.yaml
wget https://raw.githubusercontent.com/kubesphere/ks-installer/v3.0.0/deploy/cluster-configuration.yaml
修改 cluster-configuration.yaml，找到相应字段开启需要安装的组件，以下仅为参考：
devops:
enabled: true
......
logging:
enabled: true
......
metrics_server:
enabled: true
......
openpitrix:
enabled: true
......
上面开启了 devopos、日志、metrics server 以及应用商店。
执行以下 yaml 部署 kubeSphere
kubectl apply -f kubesphere-installer.yaml
kubectl apply -f cluster-configuration.yaml
查看部署日志，确认无报错
kubectl logs -n kubesphere-system $(kubectl get pod -n kubesphere-system -l app=ks-install -o jsonpath='{.items[0].metadata.name}') -f
部署完成后确认所有 pod 运行正常
[root@k8s-master1 ceph]# kubectl get pods -A | grep kubesphere
kubesphere-controls-system default-http-backend-857d7b6856-87hfd 1/1 Running 0 100m
kubesphere-controls-system kubectl-admin-58f985d8f6-9s6lr 1/1 Running 0 17m
kubesphere-devops-system ks-jenkins-54455f5db8-cxw6r 1/1 Running 0 97m
kubesphere-devops-system s2ioperator-0 1/1 Running 1 98m
kubesphere-devops-system uc-jenkins-update-center-cd9464fff-6g7w6 1/1 Running 0 99m
kubesphere-logging-system elasticsearch-logging-data-0 1/1 Running 0 101m
kubesphere-logging-system elasticsearch-logging-data-1 1/1 Running 0 99m
kubesphere-logging-system elasticsearch-logging-data-2 1/1 Running 0 98m
kubesphere-logging-system elasticsearch-logging-discovery-0 1/1 Running 0 101m
kubesphere-logging-system elasticsearch-logging-discovery-1 1/1 Running 0 99m
kubesphere-logging-system elasticsearch-logging-discovery-2 1/1 Running 0 98m
kubesphere-logging-system fluent-bit-725c4 1/1 Running 0 100m
kubesphere-logging-system fluent-bit-9rc6d 1/1 Running 0 100m
kubesphere-logging-system fluent-bit-g5n57 1/1 Running 0 100m
kubesphere-logging-system fluent-bit-n85tz 1/1 Running 0 100m
kubesphere-logging-system fluent-bit-nfpgl 1/1 Running 0 100m
kubesphere-logging-system fluent-bit-pc527 1/1 Running 0 100m
kubesphere-logging-system fluentbit-operator-855d4b977d-ffr2g 1/1 Running 0 101m
kubesphere-logging-system logsidecar-injector-deploy-74c66bfd85-t67gz 2/2 Running 0 99m
kubesphere-logging-system logsidecar-injector-deploy-74c66bfd85-vsvrh 2/2 Running 0 99m
kubesphere-monitoring-system alertmanager-main-0 2/2 Running 0 98m
kubesphere-monitoring-system alertmanager-main-1 2/2 Running 0 98m
kubesphere-monitoring-system alertmanager-main-2 2/2 Running 0 98m
kubesphere-monitoring-system kube-state-metrics-95c974544-xqkv5 3/3 Running 0 98m
kubesphere-monitoring-system node-exporter-95462 2/2 Running 0 98m
kubesphere-monitoring-system node-exporter-9cxnq 2/2 Running 0 98m
kubesphere-monitoring-system node-exporter-cbp58 2/2 Running 0 98m
kubesphere-monitoring-system node-exporter-cx8fz 2/2 Running 0 98m
kubesphere-monitoring-system node-exporter-tszl7 2/2 Running 0 98m
kubesphere-monitoring-system node-exporter-tt9f2 2/2 Running 0 98m
kubesphere-monitoring-system notification-manager-deployment-7c8df68d94-9mtvx 1/1 Running 0 97m
kubesphere-monitoring-system notification-manager-deployment-7c8df68d94-rvr6m 1/1 Running 0 97m
kubesphere-monitoring-system notification-manager-operator-6958786cd6-6qbqz 2/2 Running 0 97m
kubesphere-monitoring-system prometheus-k8s-0 3/3 Running 1 98m
kubesphere-monitoring-system prometheus-k8s-1 3/3 Running 1 98m
kubesphere-monitoring-system prometheus-operator-84d58bf775-kpdfq 2/2 Running 0 98m
kubesphere-system etcd-65796969c7-5fxjf 1/1 Running 0 101m
kubesphere-system ks-apiserver-59d74f777d-776rg 1/1 Running 11 50m
kubesphere-system ks-apiserver-59d74f777d-djz68 1/1 Running 0 18m
kubesphere-system ks-apiserver-59d74f777d-gfn7v 1/1 Running 20 97m
kubesphere-system ks-console-786b9846d4-9djs9 1/1 Running 0 100m
kubesphere-system ks-console-786b9846d4-g42kc 1/1 Running 0 100m
kubesphere-system ks-console-786b9846d4-rhltz 1/1 Running 0 100m
kubesphere-system ks-controller-manager-57c45bf58b-4rsml 1/1 Running 20 96m
kubesphere-system ks-controller-manager-57c45bf58b-jlfjf 1/1 Running 20 96m
kubesphere-system ks-controller-manager-57c45bf58b-vwvq5 1/1 Running 20 97m
kubesphere-system ks-installer-7cb866bd-vj9q8 1/1 Running 0 105m
kubesphere-system minio-7bfdb5968b-bqw2x 1/1 Running 0 102m
kubesphere-system mysql-7f64d9f584-pbqph 1/1 Running 0 101m
kubesphere-system openldap-0 1/1 Running 0 102m
kubesphere-system openldap-1 1/1 Running 0 21m
kubesphere-system redis-ha-haproxy-5c6559d588-9bjrd 1/1 Running 13 102m
kubesphere-system redis-ha-haproxy-5c6559d588-9zpz9 1/1 Running 15 102m
kubesphere-system redis-ha-haproxy-5c6559d588-bzrxs 1/1 Running 19 102m
kubesphere-system redis-ha-server-0 2/2 Running 0 23m
kubesphere-system redis-ha-server-1 2/2 Running 0 22m
kubesphere-system redis-ha-server-2 2/2 Running 0 22m
注意，kubesphere 部分组件使用 helm 部署，安装 helm
version=v3.3.1
curl -LO https://repo.huaweicloud.com/helm/${version}/helm-${version}-linux-amd64.tar.gz
tar -zxvf helm-${version}-linux-amd64.tar.gz
mv linux-amd64/helm /usr/local/bin/helm && rm -rf linux-amd64
查看使用 helm 部署的应用
[root@k8s-master1 ~]# helm ls -A | grep kubesphere
elasticsearch-logging kubesphere-logging-system 1 2020-10-09 13:08:51.160758783 +0800 CST deployed elasticsearch-1.22.1 6.7.0-0217
elasticsearch-logging-curator kubesphere-logging-system 1 2020-10-09 13:08:53.108855322 +0800 CST deployed elasticsearch-curator-1.3.3 5.5.4-0217
ks-jenkins kubesphere-devops-system 1 2020-10-09 13:12:44.612683667 +0800 CST deployed jenkins-0.19.0 2.121.3-0217
ks-minio kubesphere-system 1 2020-10-09 13:07:53.607800017 +0800 CST deployed minio-2.5.16 RELEASE.2019-08-07T01-59-21Z
ks-openldap kubesphere-system 1 2020-10-09 13:07:41.468154298 +0800 CST deployed openldap-ha-0.1.0 1.0
ks-redis kubesphere-system 1 2020-10-09 13:07:34.128473211 +0800 CST deployed redis-ha-3.9.0 5.0.5
logsidecar-injector kubesphere-logging-system 1 2020-10-09 13:10:48.478814658 +0800 CST deployed logsidecar-injector-0.1.0 0.1.0
notification-manager kubesphere-monitoring-system 1 2020-10-09 13:12:19.698782146 +0800 CST deployed notification-manager-0.1.0 0.1.0
uc kubesphere-devops-system 1 2020-10-09 13:10:34.954444043 +0800 CST deployed jenkins-update-center-0.8.0 3.0.0
查看绑定的 pv
[root@k8s-master1 ~]# kubectl get pv
NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE
pvc-02d60e15-a76e-4e8e-98b4-bd2741faf2bb 4Gi RWO Delete Bound kubesphere-logging-system/data-elasticsearch-logging-discovery-0 rook-ceph-block 108m
pvc-1d34723f-8908-4dc9-b560-ecd8bd35aa57 2Gi RWO Delete Bound kubesphere-system/openldap-pvc-openldap-1 rook-ceph-block 28m
pvc-2a355379-1358-42ae-9eaa-fcba53295134 20Gi RWO Delete Bound kubesphere-logging-system/data-elasticsearch-logging-data-2 rook-ceph-block 105m
pvc-38bb0d32-11eb-468b-839f-ddb796bec6a1 4Gi RWO Delete Bound kubesphere-logging-system/data-elasticsearch-logging-discovery-1 rook-ceph-block 105m
pvc-41291f83-031a-42a4-9842-4781fcc4383e 8Gi RWO Delete Bound kubesphere-devops-system/ks-jenkins rook-ceph-block 104m
pvc-4bddf760-462e-424f-aa24-666ce50168ca 20Gi RWO Delete Bound kubesphere-monitoring-system/prometheus-k8s-db-prometheus-k8s-1 rook-ceph-block 104m
pvc-4f741a76-08e7-428f-9489-d9655b82994e 20Gi RWO Delete Bound kubesphere-logging-system/data-elasticsearch-logging-data-1 rook-ceph-block 106m
pvc-66f15326-e9de-4b2e-9682-d585f359bada 20Gi RWO Delete Bound kubesphere-monitoring-system/prometheus-k8s-db-prometheus-k8s-0 rook-ceph-block 104m
pvc-7adcda06-7875-41b0-8ddb-c7aa6c448ae5 20Gi RWO Delete Bound kubesphere-system/mysql-pvc rook-ceph-block 108m
pvc-7f7ac4f3-ed29-42d7-b35f-fc15f1b3f2f8 2Gi RWO Delete Bound kubesphere-system/data-redis-ha-server-1 rook-ceph-block 29m
pvc-9a15a19f-59f0-4ddf-9356-8c1a09aad33a 2Gi RWO Delete Bound kubesphere-system/openldap-pvc-openldap-0 rook-ceph-block 109m
pvc-9d7ca083-62e8-4177-a7ed-dacc912bf091 2Gi RWO Delete Bound kubesphere-system/data-redis-ha-server-0 rook-ceph-block 109m
pvc-a71517e7-0bd8-48ca-b6a0-5710dde18c64 20Gi RWO Delete Bound kubesphere-system/minio rook-ceph-block 109m
pvc-db18d04e-6595-4fd1-836a-f42628a25d0b 20Gi RWO Delete Bound kubesphere-logging-system/data-elasticsearch-logging-data-0 rook-ceph-block 108m
pvc-e781c644-8304-4461-acd8-a136889e1174 20Gi RWO Delete Bound kubesphere-system/etcd-pvc rook-ceph-block 108m
pvc-f288b4df-7458-4f91-8608-3af078986d33 4Gi RWO Delete Bound kubesphere-logging-system/data-elasticsearch-logging-discovery-2 rook-ceph-block 105m
pvc-fe493c61-63e7-4a20-96f8-a2c550b019f4 2Gi RWO Delete Bound kubesphere-system/data-redis-ha-server-2 rook-ceph-block 29m
实际上 pv 是 ceph 使用 rbd 客户端挂载到节点的块设备
[root@k8s-node1 ~]# lsblk | grep rbd
rbd0 251:0 0 20G 0 disk /var/lib/kubelet/pods/810061ea-fac0-4a38-9586-ee14c8fda984/volumes/kubernetes.io~csi/pvc-e781c644-8304-4461-acd8-a136889e1174/mount
rbd1 251:16 0 20G 0 disk /var/lib/kubelet/pods/7ab52612-0893-4834-839b-dbd3ee9d7589/volumes/kubernetes.io~csi/pvc-7adcda06-7875-41b0-8ddb-c7aa6c448ae5/mount
rbd2 251:32 0 4G 0 disk /var/lib/kubelet/pods/83bf95f7-6e7a-4699-aa4e-ea6564ebaad4/volumes/kubernetes.io~csi/pvc-02d60e15-a76e-4e8e-98b4-bd2741faf2bb/mount
rbd3 251:48 0 20G 0 disk /var/lib/kubelet/pods/e313f3ba-fd19-4f6f-a561-78e4e62614b9/volumes/kubernetes.io~csi/pvc-4f741a76-08e7-428f-9489-d9655b82994e/mount
rbd4 251:64 0 8G 0 disk /var/lib/kubelet/pods/5265b538-90da-412d-be5e-3326af7c3196/volumes/kubernetes.io~csi/pvc-41291f83-031a-42a4-9842-4781fcc4383e/mount
查看 pv 和块设备对应关系
[root@k8s-master1 ~]# kubectl get volumeattachment
NAME ATTACHER PV NODE ATTACHED AGE
csi-053f2bfa28ac8ab9c17f7f4981dce4a0b4aadc8c933e8fdff32da16d623501f4 rook-ceph.rbd.csi.ceph.com pvc-f288b4df-7458-4f91-8608-3af078986d33 k8s-node2 true 109m
csi-3709f608c4edf4c4c92721add6e69b6223b5390ed81f1b8ccf7a5da1705cd94b rook-ceph.rbd.csi.ceph.com pvc-38bb0d32-11eb-468b-839f-ddb796bec6a1 k8s-node3 true 110m
csi-4b8bdac0b581c0291707130d6bb1dcb5ebc66a56d3e067dfbb4f56edb6c7abf9 rook-ceph.rbd.csi.ceph.com pvc-4f741a76-08e7-428f-9489-d9655b82994e k8s-node1 true 111m
csi-8a39d696f23a13b00b4dea835f732c5bd9a05e8e851dc47cb6b8bf9a9343a0f2 rook-ceph.rbd.csi.ceph.com pvc-9d7ca083-62e8-4177-a7ed-dacc912bf091 k8s-master2 true 114m
csi-8a99e4304666fa74d6216590ff1b6373879c7c6744c97e90950c165fa778653c rook-ceph.rbd.csi.ceph.com pvc-e781c644-8304-4461-acd8-a136889e1174 k8s-node1 true 113m
csi-cda98cea8f1ad1f5949005d5f5f10e5929c82d05f348ae31300adb8aec775b6d rook-ceph.rbd.csi.ceph.com pvc-7f7ac4f3-ed29-42d7-b35f-fc15f1b3f2f8 k8s-master3 true 34m
csi-d01b8cac9a340fd5e96170e2cc196574bf509db04b00430b24f4d50042e0b9e6 rook-ceph.rbd.csi.ceph.com pvc-02d60e15-a76e-4e8e-98b4-bd2741faf2bb k8s-node1 true 113m
csi-d340f3ccdc4681db8ba5336e5ba846f5d0f31369612f685eba304aaa28745971 rook-ceph.rbd.csi.ceph.com pvc-41291f83-031a-42a4-9842-4781fcc4383e k8s-node1 true 109m
csi-d4db3283dd2b1c7373534b01330f8ed32ebd0548c348875d590b43d505a75237 rook-ceph.rbd.csi.ceph.com pvc-4bddf760-462e-424f-aa24-666ce50168ca k8s-node3 true 109m
csi-dfac397b86769d712799d700e1919a083418c2e706ca000da1da60b715bdbf5a rook-ceph.rbd.csi.ceph.com pvc-2a355379-1358-42ae-9eaa-fcba53295134 k8s-node2 true 110m
csi-e7c56dab61b9b42c16e9fca1269e6e700de4d8f0fa38922c0f482c96ad3d757a rook-ceph.rbd.csi.ceph.com pvc-9a15a19f-59f0-4ddf-9356-8c1a09aad33a k8s-master3 true 114m
csi-e914c5d320012d41f5f459fa9fd3ca9afc8d73e5d5d126b5be93f0cecff57ebd rook-ceph.rbd.csi.ceph.com pvc-1d34723f-8908-4dc9-b560-ecd8bd35aa57 k8s-master2 true 33m
csi-ef8c703a1616bd46231d264fa5413dd562f9472c7430a2a834cbc0a04c1a673f rook-ceph.rbd.csi.ceph.com pvc-7adcda06-7875-41b0-8ddb-c7aa6c448ae5 k8s-node1 true 113m
csi-f71974ab0cdcc67cd3ff230d4a0e900755dc2582d58b6b657263c6fc4fc7274d rook-ceph.rbd.csi.ceph.com pvc-a71517e7-0bd8-48ca-b6a0-5710dde18c64 k8s-node3 true 114m
csi-fb4499d62b6b9767a4396432983f7c684e2a32dcb042a10e859a7c229be9af0b rook-ceph.rbd.csi.ceph.com pvc-66f15326-e9de-4b2e-9682-d585f359bada k8s-node2 true 109m
csi-fe7c56b8f0ed55169ec71654b0952d2839f04b0855c4d0f9c56ec1e9f7c37fe1 rook-ceph.rbd.csi.ceph.com pvc-fe493c61-63e7-4a20-96f8-a2c550b019f4 k8s-master1 true 34m
csi-ff5de0f94fc2ca7b5c4f43b81f9eb97c6f9f5ad091d6d78fd9d422d4f3f030cc rook-ceph.rbd.csi.ceph.com pvc-db18d04e-6595-4fd1-836a-f42628a25d0b k8s-node3 true 113m
上面的 pv 对应 ceph 中的 image 概念
#进入toolbox pod
kubectl -n rook-ceph exec -it $(kubectl -n rook-ceph get pod -l "app=rook-ceph-tools" -o jsonpath='{.items[0].metadata.name}') -- bash
#列出replicapool存储池中所有的image
[root@rook-ceph-tools-7cc7fd5755-784tv /]# rbd ls replicapool
csi-vol-109ef2dd-09ee-11eb-b2f2-ea801b5d83dd
csi-vol-57b3fd9d-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-5bdc9036-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-630ff002-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-80284a01-09f8-11eb-9cca-0afc38dd23d7
csi-vol-81db6730-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-82a332e4-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-857bc4bd-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-857bf228-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-91eced11-09f8-11eb-9cca-0afc38dd23d7
csi-vol-a4f2686e-09f8-11eb-9cca-0afc38dd23d7
csi-vol-c4a815f1-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-d9906c83-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-e2b254e2-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-f404ab61-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-fde4f65d-09ed-11eb-b2f2-ea801b5d83dd
csi-vol-fdeef353-09ed-11eb-b2f2-ea801b5d83dd

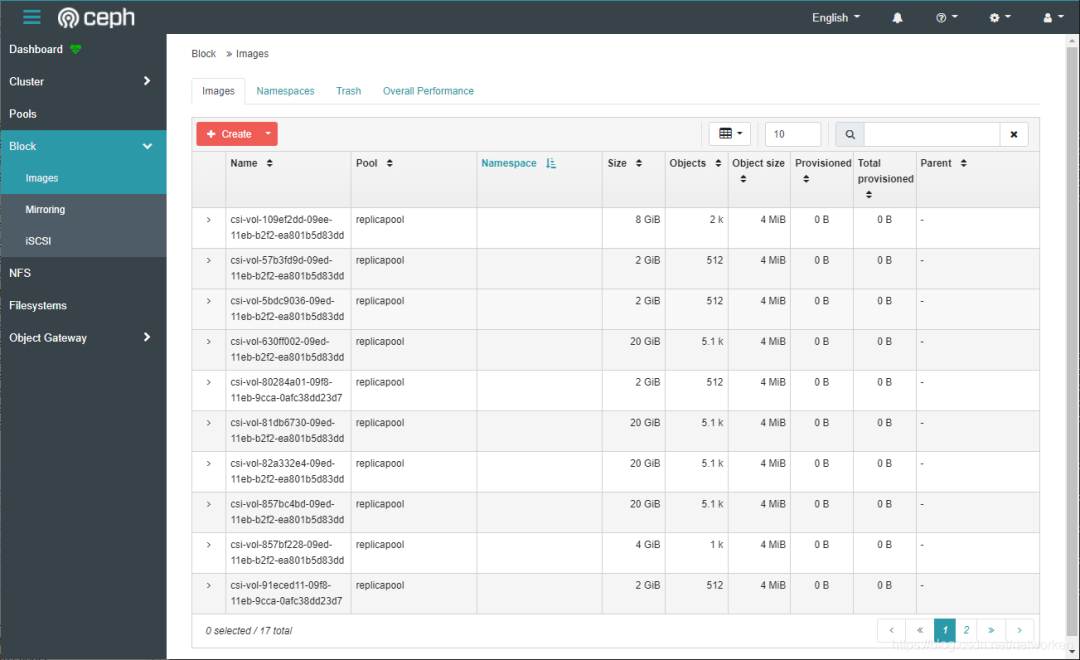

或者登陆 ceph dashoboard 查看，点击 images 查看
访问 kubeSphere UI
获取 web console 监听端口，默认为 30880
kubectl get svc/ks-console -n kubesphere-system
默认登录账号为
admin/P@88w0rd

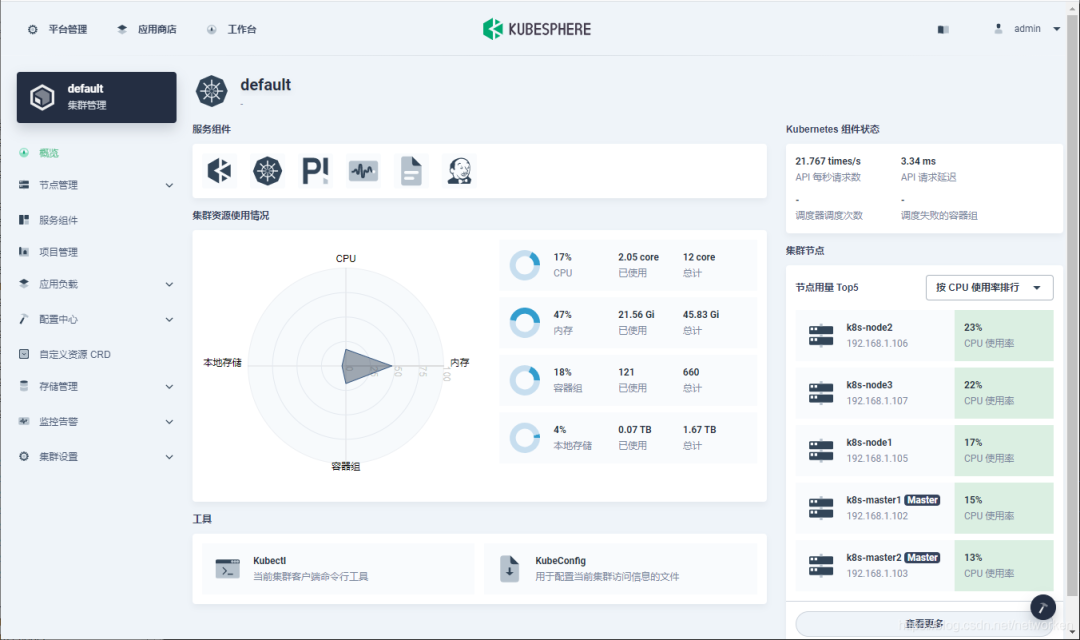

登录 kubesphere UI,查看集群概况：

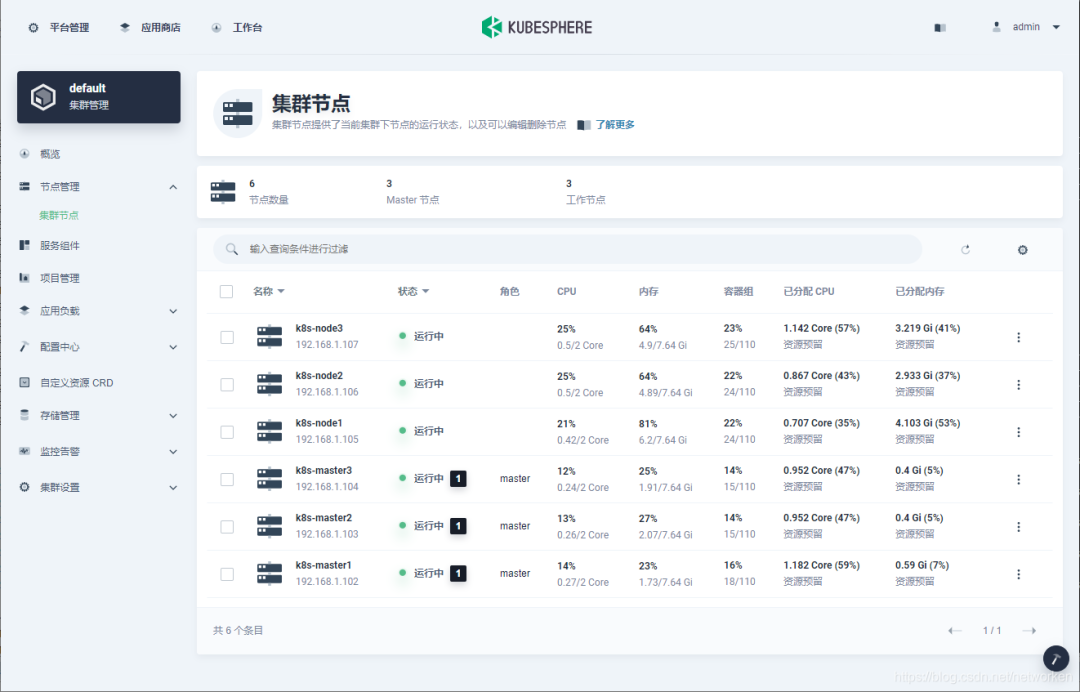

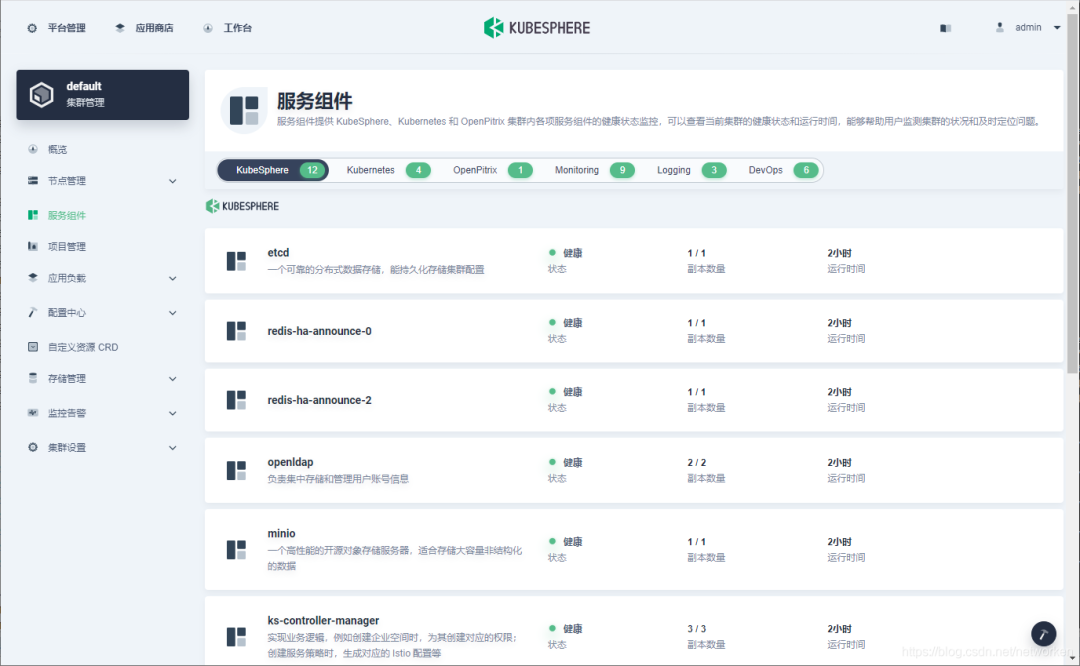

集群节点信息服务组件信息

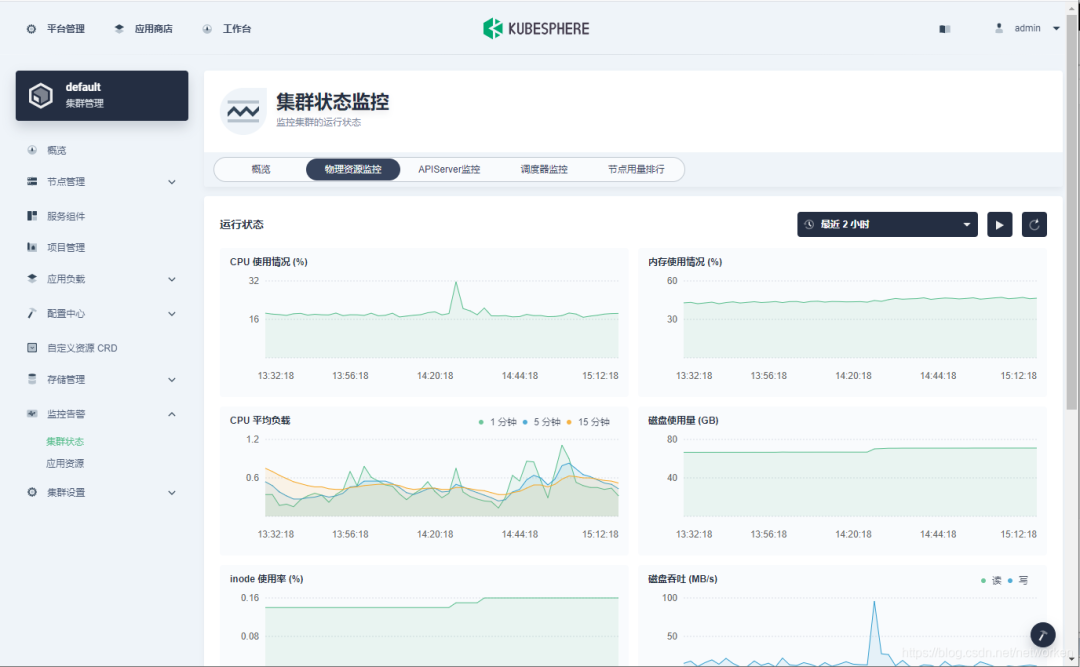

集群状态监控

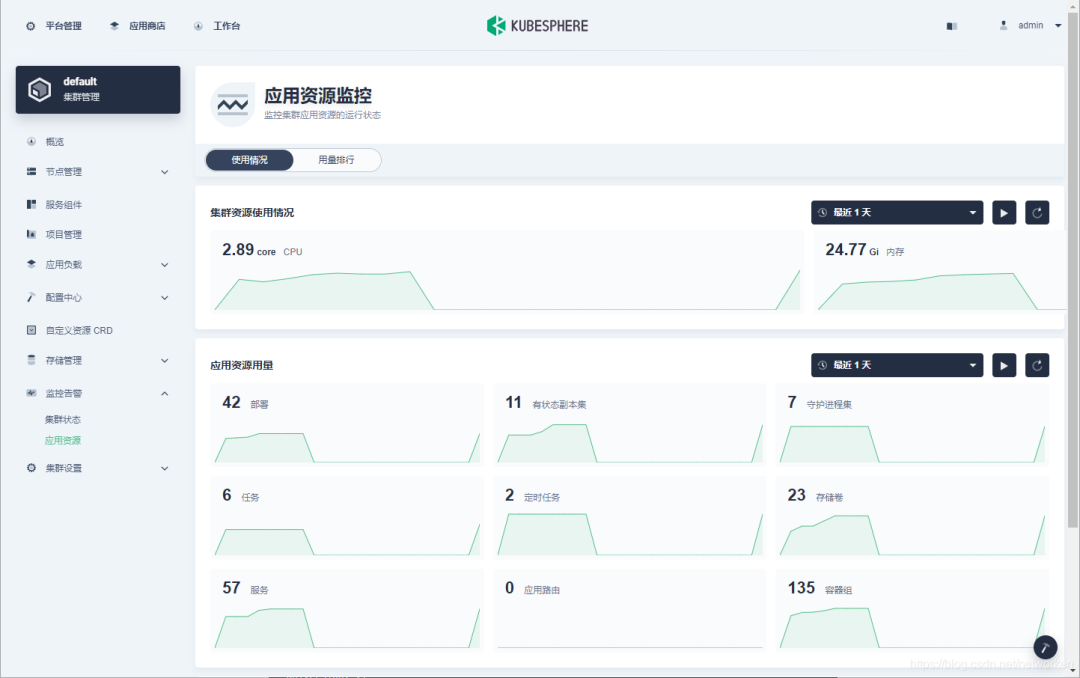

应用资源监控

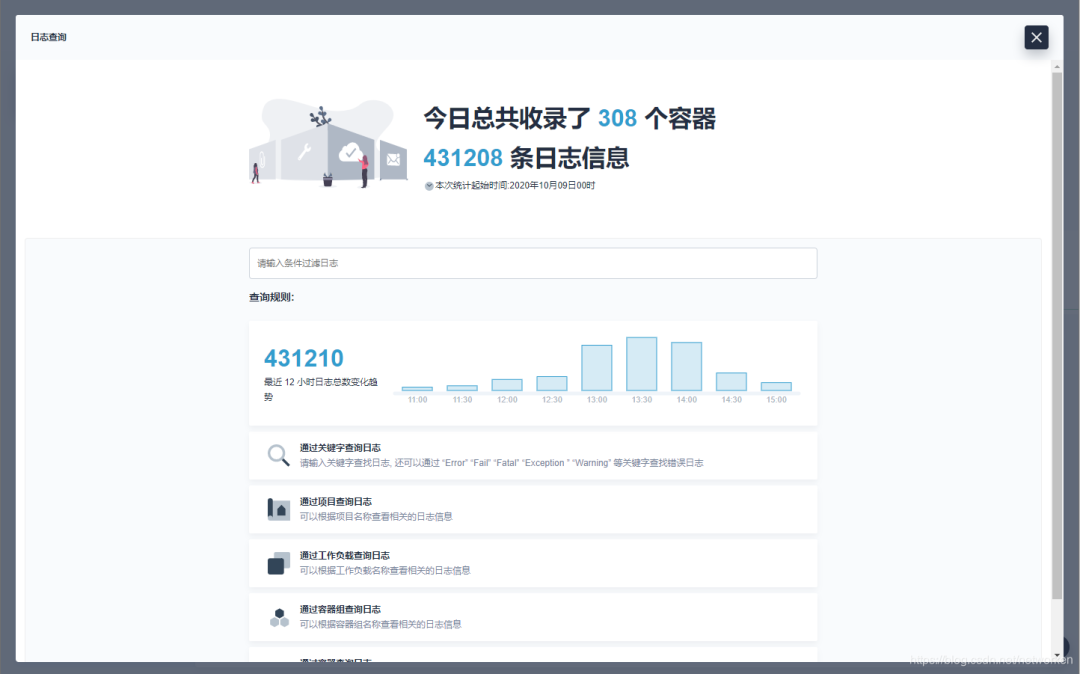

日志查询（右下角图标）

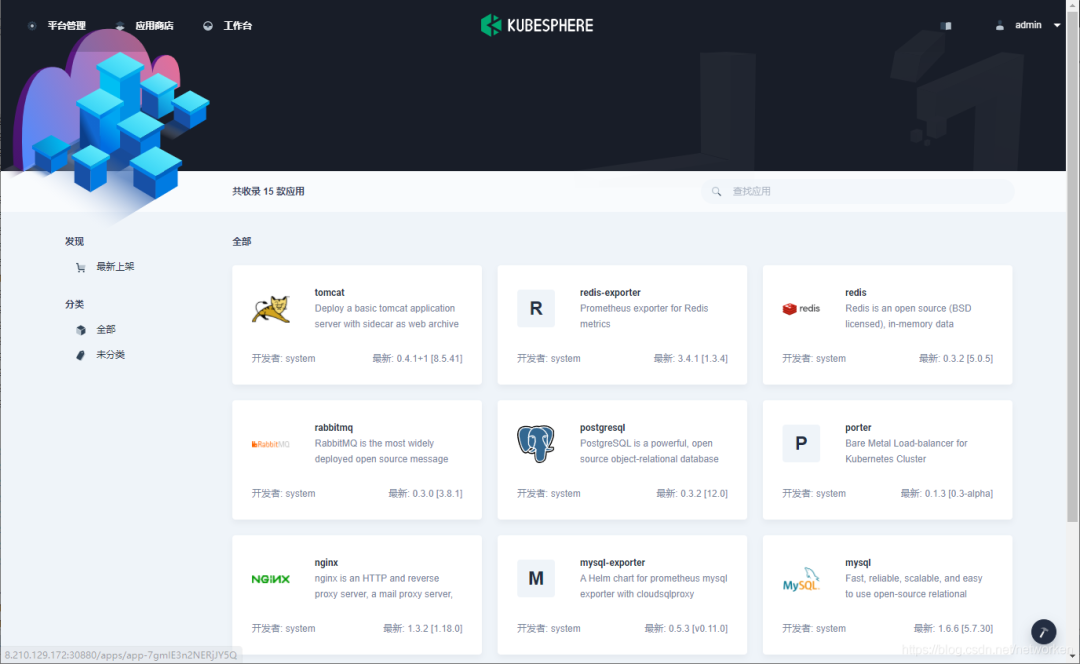

应用商店（helm 应用）
kubesphere 部署普通应用
以部署 deployment 类型应用为例
- 点击左上角平台管理，选择访问控制，创建一个普通用户，角色为 platform-regular
- 创建一个企业空间，点击进入企业空间，选择企业空间设置，企业成员，邀请成员
- 将之前创建的普通用户加入企业空间，角色选择 self-provisioner
- 以普通用户身份登陆到 kubesphere，创建项目

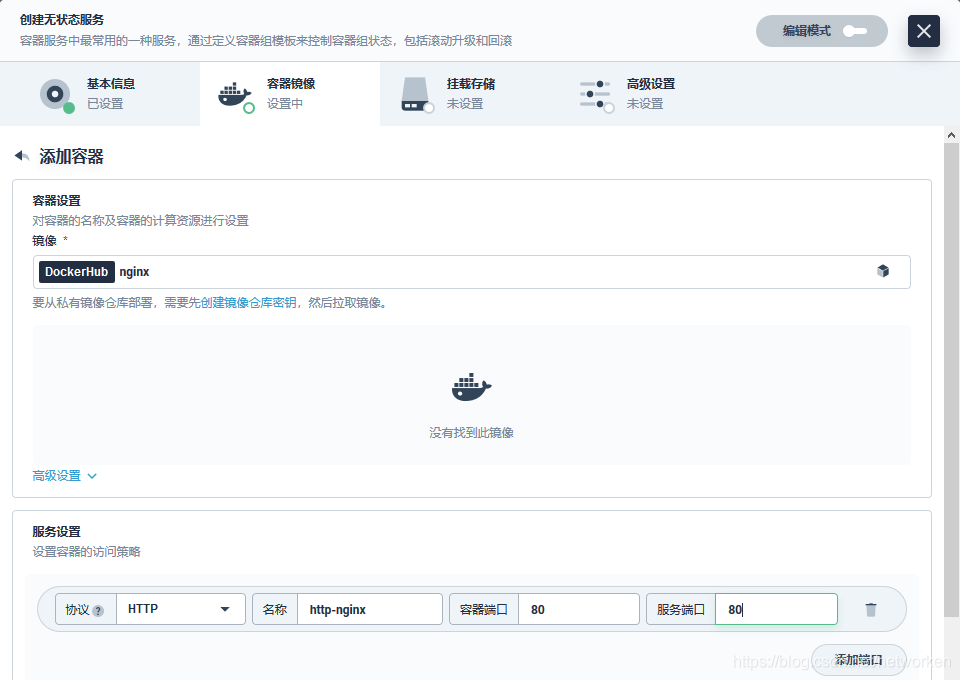

- 选择应用负载，服务，创建无状态服务，填写名称、镜像及服务端口信息
以部署 nginx 为例
开启外网访问选择 nodeport，点击创建。

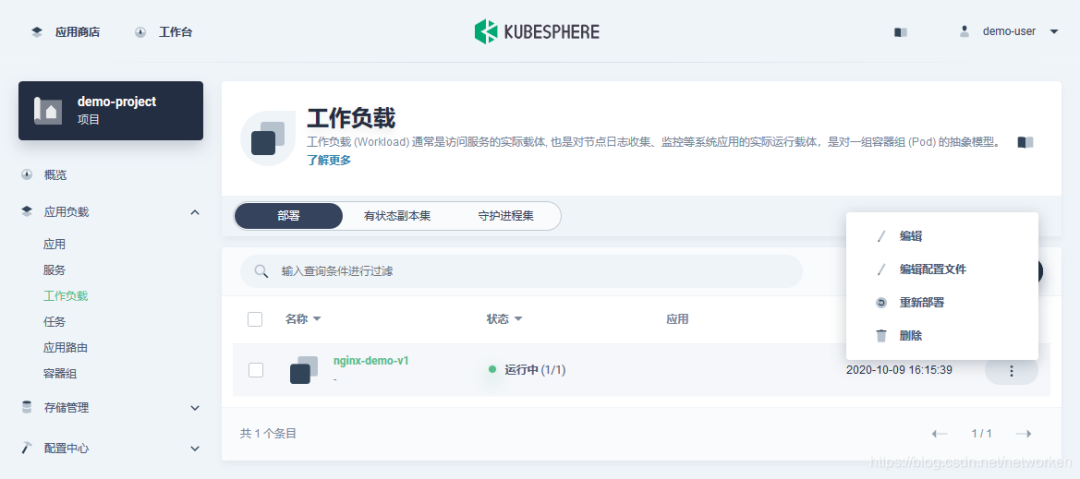

然后查看工作负载，选择右侧编辑配置文件可以看到 yaml 中定义的 deployment 类型应用：工作负载支持部署的应用类型为:
- 部署-对应 k8s 中的 deployment
- 有状态副本集-对应 k8s 中的 statefulset
- 守护进程集-对应 k8s 中的 daemonset
- 下面的任务选项-对应 k8s 中的 job 和 cronjob
kubesphere 部署 helm 应用
以部署 tidb 数据库为例。

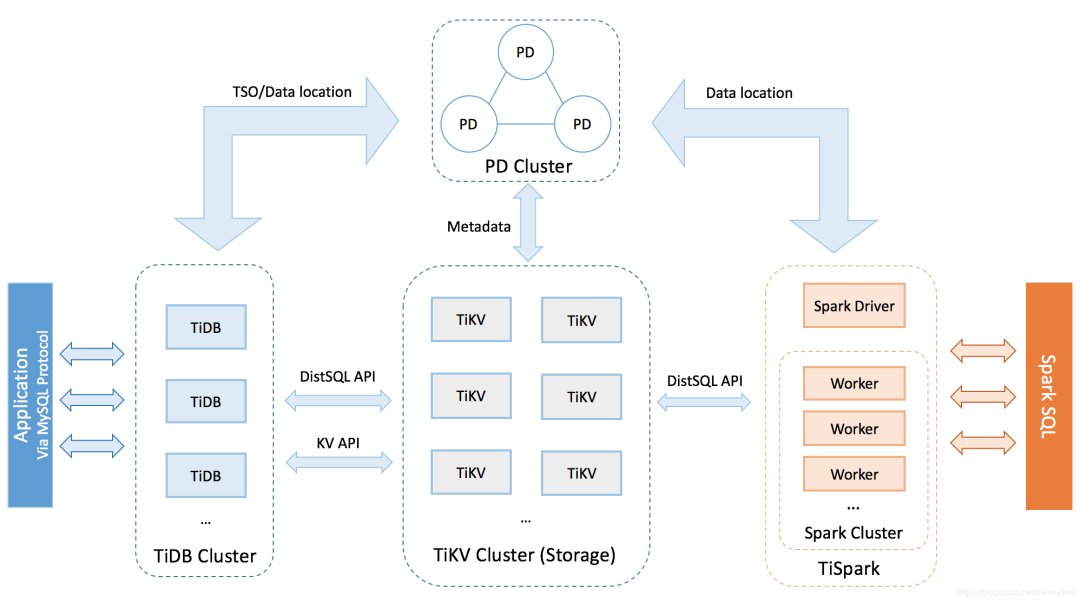

TiDB[5] 是一款定位于在线事务处理/在线分析处理（ HTAP: Hybrid Transactional/Analytical Processing）的融合型数据库产品，实现了一键水平伸缩，强一致性的多副本数据安全，分布式事务，实时 OLAP 等重要特性。同时兼容 MySQL 协议和生态，迁移便捷，运维成本极低。参考：https://github.com/pingcap/docs-tidb-operator/blob/master/zh/get-started.md[6]
下载 tidb operator helm chart
helm repo add pingcap https://charts.pingcap.org/
helm search repo pingcap --version=v1.1.5
helm pull pingcap/tidb-cluster
helm pull pingcap/tidb-operator
将下载的 chart 包保存到本地：
[root@k8s-master1 ~]# ls | grep tidb
tidb-cluster-v1.1.5.tgz
tidb-operator-v1.1.5.tgz

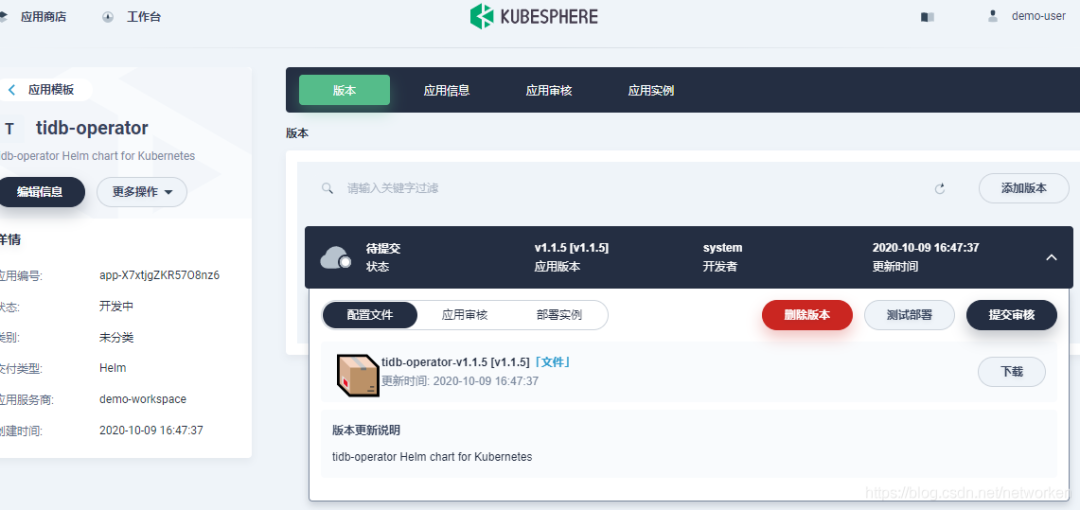

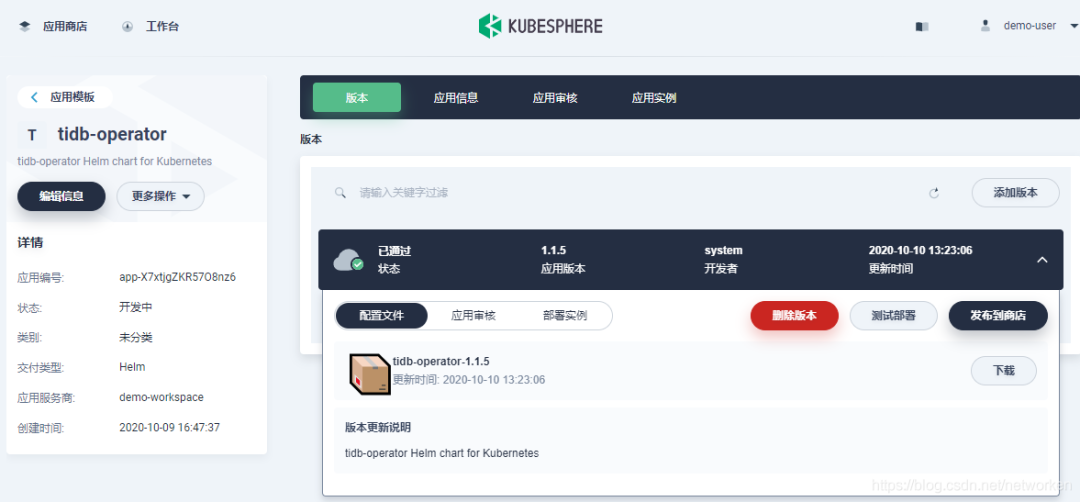

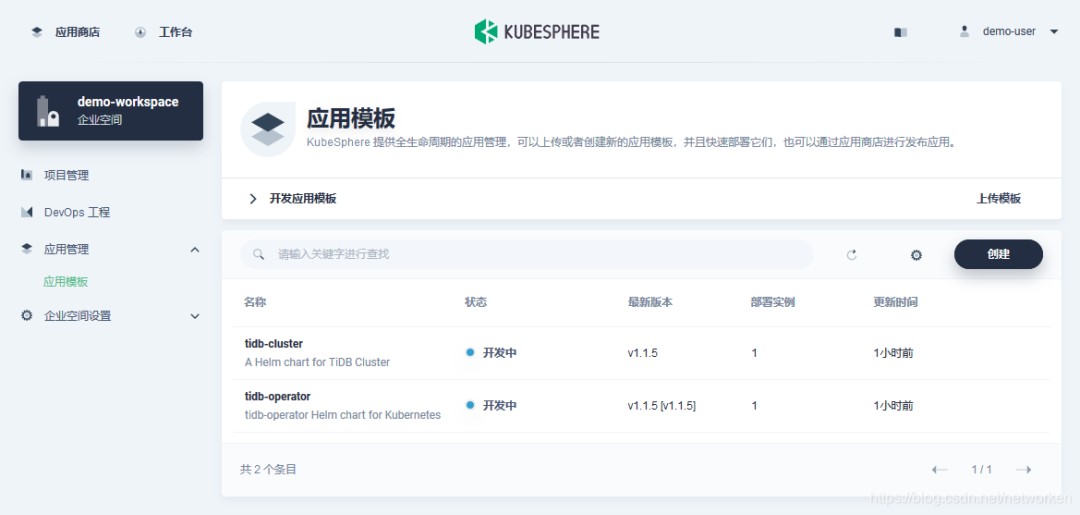

以普通用户身份登录 kubesphere，点击工作台，应用管理，应用模板，上传模板，上传完成后如下图：
首先使用命令安装 TiDB Operator CRDs
kubectl apply -f https://raw.githubusercontent.com/pingcap/tidb-operator/v1.1.5/manifests/crd.yaml

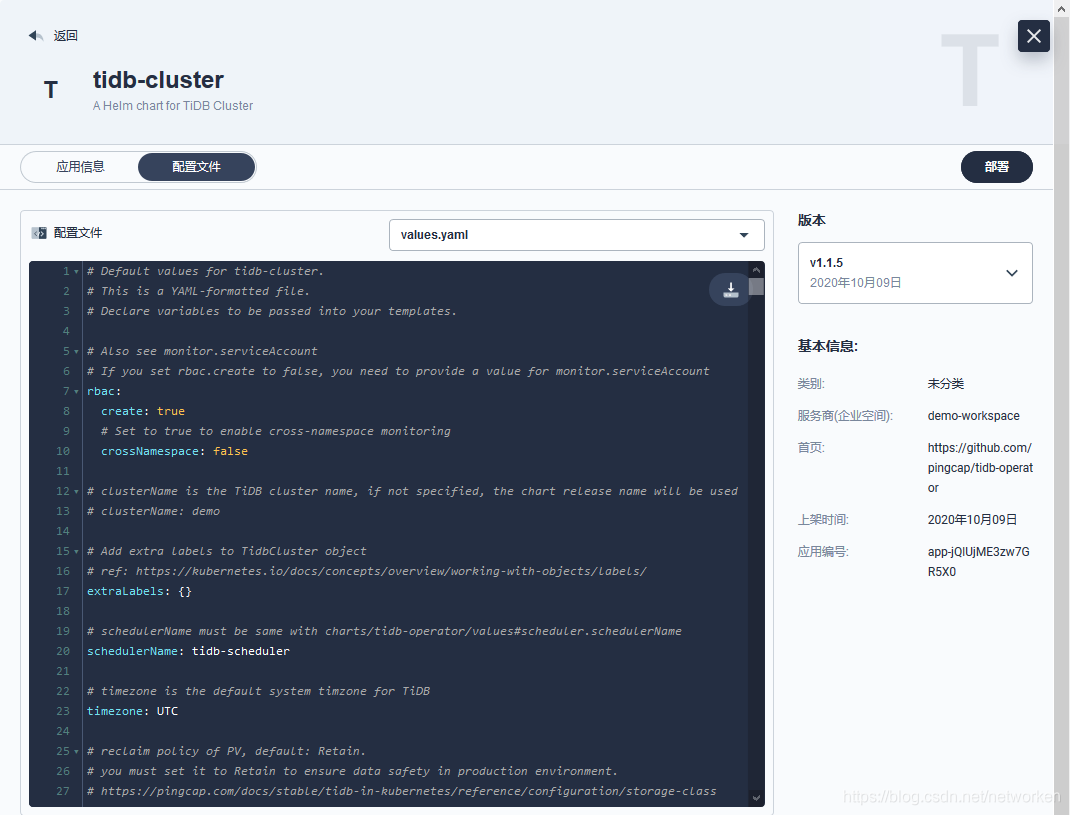

然后选择项目管理，进入项目，点击应用，部署新应用，来自应用模板，选择 tidb-operator 直接部署即可，无需修改配置文件。完成后同样方式部署 tidb-cluster，注意这次需要将 values.yaml 配置文件下载到本地，将 storageClassName 值 local-storage 替换为 rook-ceph-block，替换完成后在覆盖粘贴到配置文件中，然后执行部署：部署完成后，选择应用可以查看部署情况：

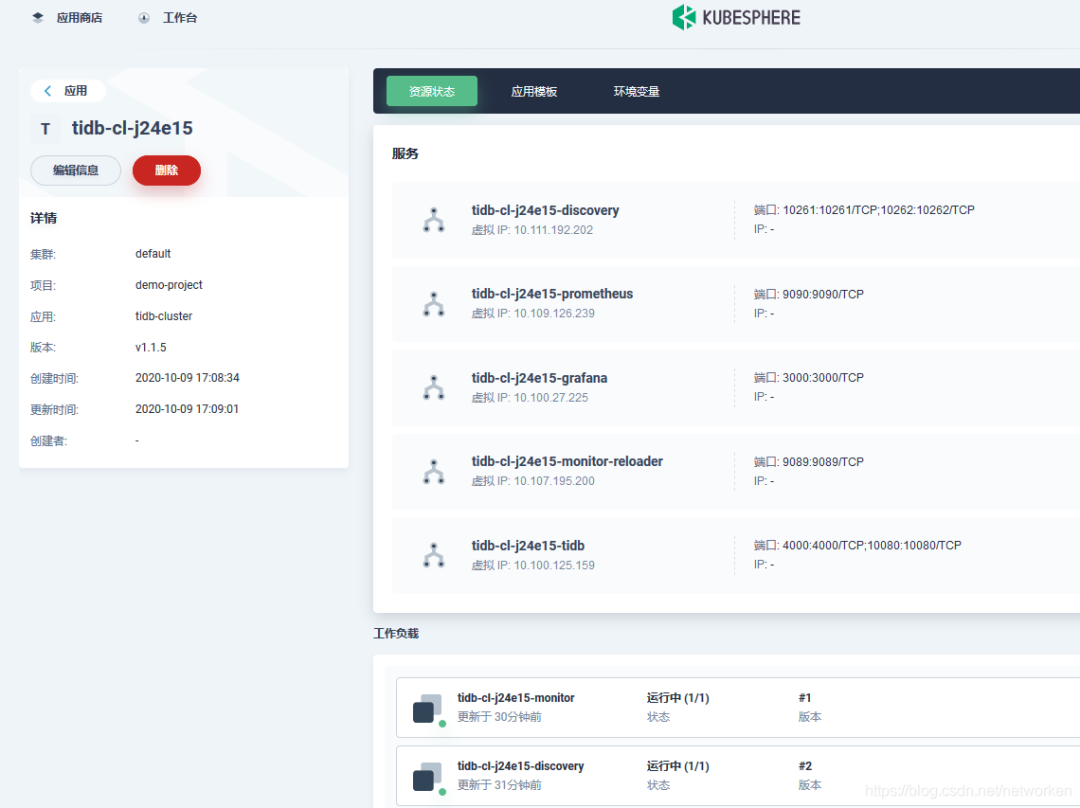

点击 tidb-ci 查看应用详情，可以看到有 2 个工作负载，这 2 个为 deployment 类型资源
点击工作负载，有状态副本集，可以看到 tidb 部分组件是 statefulset 类型

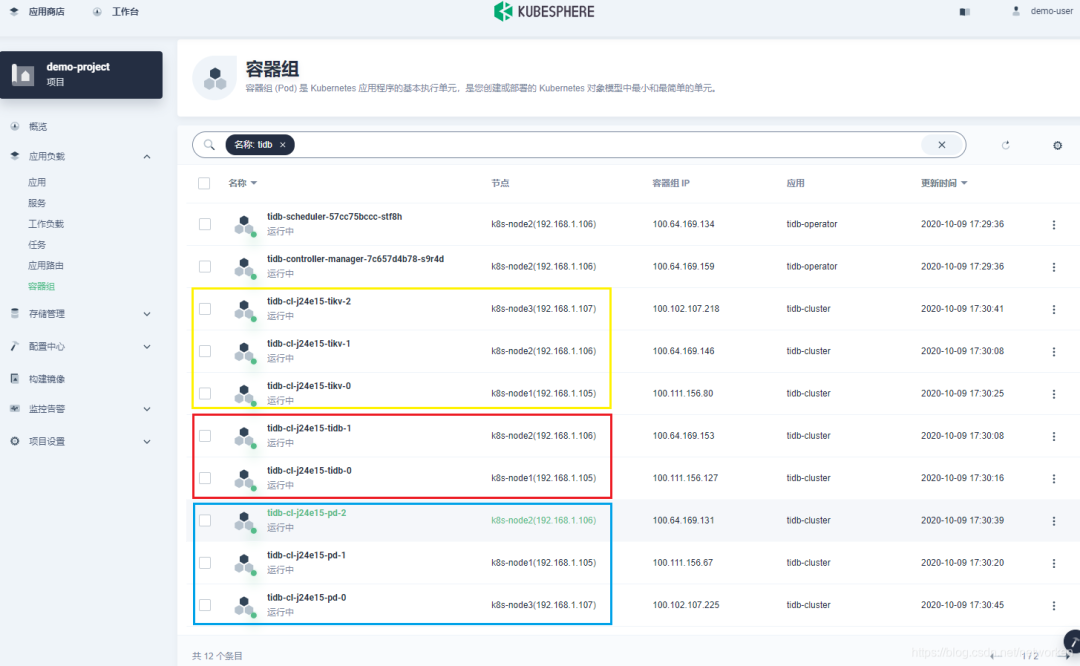

点击容器组（pod），过滤 tidb，按名称排序，看下 tidb operator 都部署了哪些组件：
可以看到部署了 2 个 tidb ，3 个 tikv 以及 3 个 pd，都调度在不同的节点上，保证了高可用。

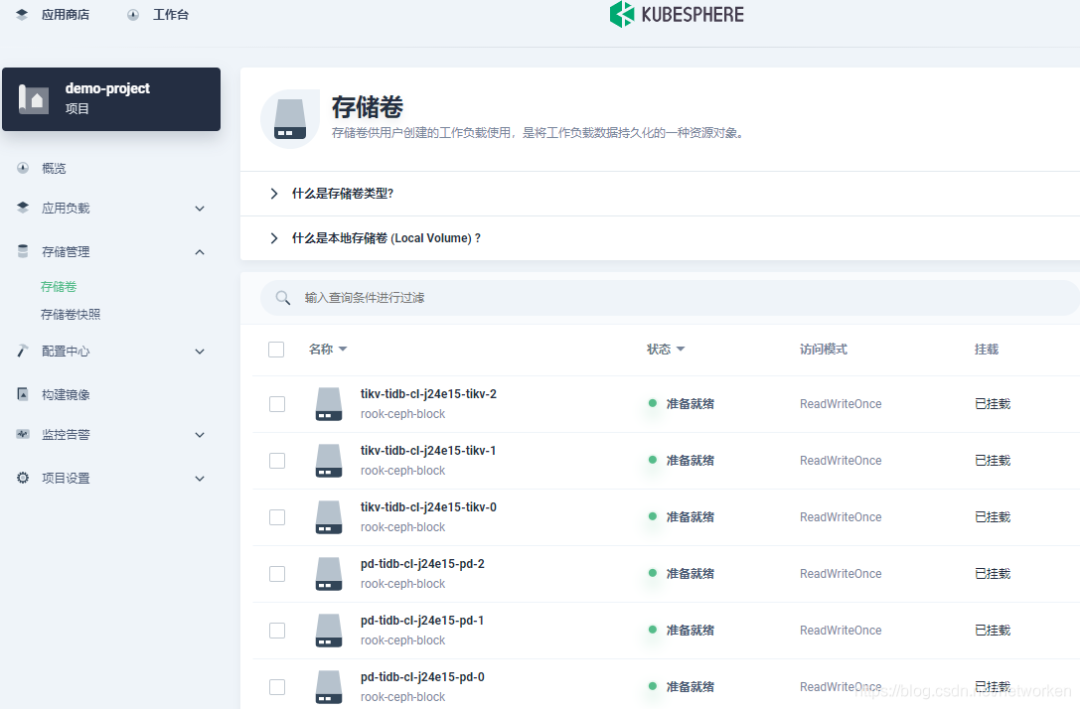

点击存储管理，存储卷，其中 tikv 和 pd 这 2 个组件挂载了 pv 持久卷。

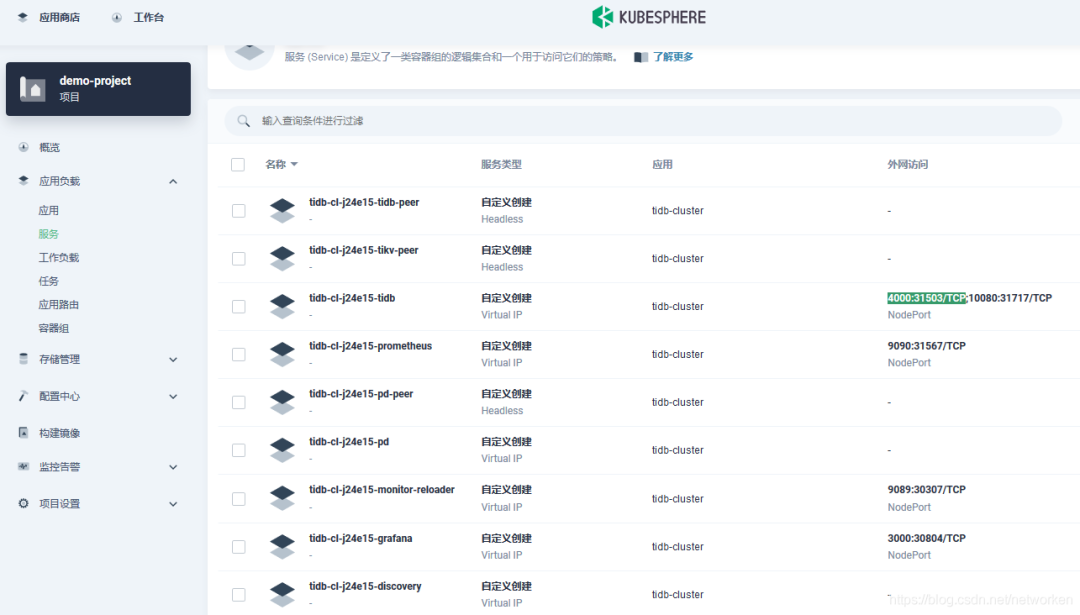

点击服务，可以看到 tidb 4000 端口默认 service 类型为 nodePort:
测试使用 mysql 客户端连接数据库
[root@k8s-master1 ~]# docker run -it --rm mysql bash
[root@0d7cf9d2173e:/# mysql -h 192.168.1.102 -P 31503 -u root
Welcome to the MySQL monitor. Commands end with ; or \g.
Your MySQL connection id is 201
Server version: 5.7.25-TiDB-v4.0.6 TiDB Server (Apache License 2.0) Community Edition, MySQL 5.7 compatible
Copyright (c) 2000, 2020, Oracle and/or its affiliates. All rights reserved.
Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.
Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.
mysql> show databases;
+--------------------+
| Database |
+--------------------+
| INFORMATION_SCHEMA |
| METRICS_SCHEMA |
| PERFORMANCE_SCHEMA |
| mysql |
| test |
+--------------------+
5 rows in set (0.01 sec)
mysql>

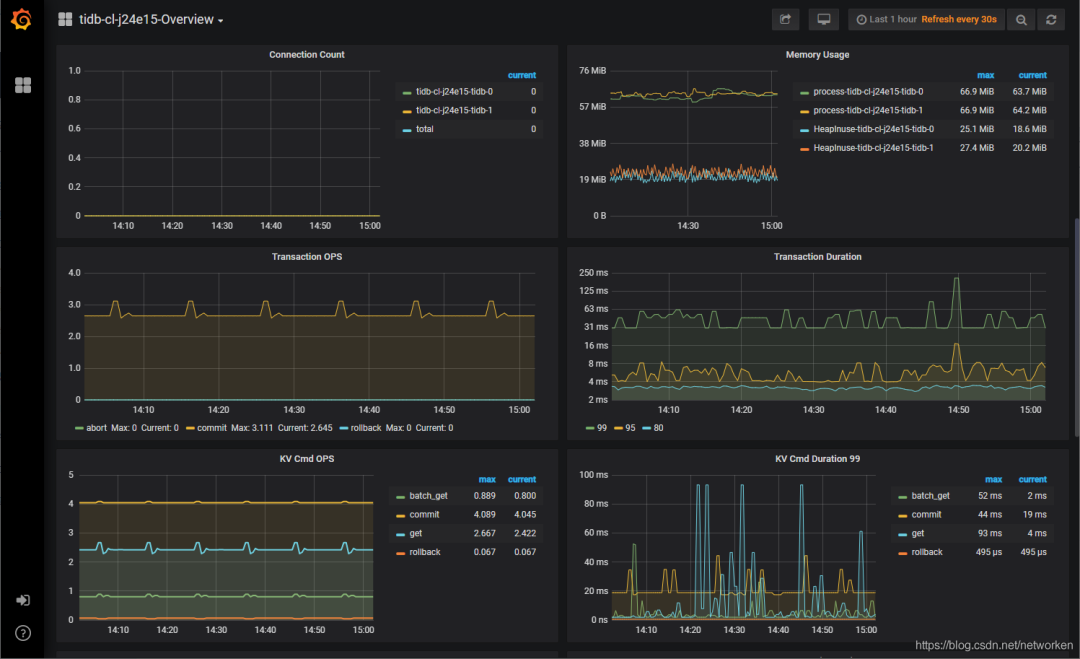

tidb operator 自带了 prometheus 和 grafana，用于数据库集群的性能监控，服务选项中可以看到 grafana 的 serivce 3000 端口绑定到了 30804 nodeport，访问 grafana，随便查看一个指标：
注意：TiDB 是重量级数据库，对磁盘 IO 和网络性能要求较高，建议运行在单独的 node 节点，rook 支持添加 SSD 盘单独创建存储池和 storageclass 提供给 tidb 使用。
不仅 tidb，在整个集群规模较大时，像 kubesphere 及 rook 都可以调度到独立节点运行，防止相互之间争抢资源、影响业务应用，或者出现性能瓶颈。这里由于节点有限，所有组件都堆到了同样的 3 个 node 节点上。
tidb 上架应用商店
tidb 部署测试没问题后，可以上架到应用商店。
以普通用户登录 kubesphere，选择应用模板，点击 tidb 应用，展开后点击提交审核：
切换到管理员用户，点击左上角平台管理，应用商店管理，应用审核，选择右侧审核通过
再次回到普通用户，选择应用模板，进入 tidb 应用，展开发现此时应用可以发布到商店

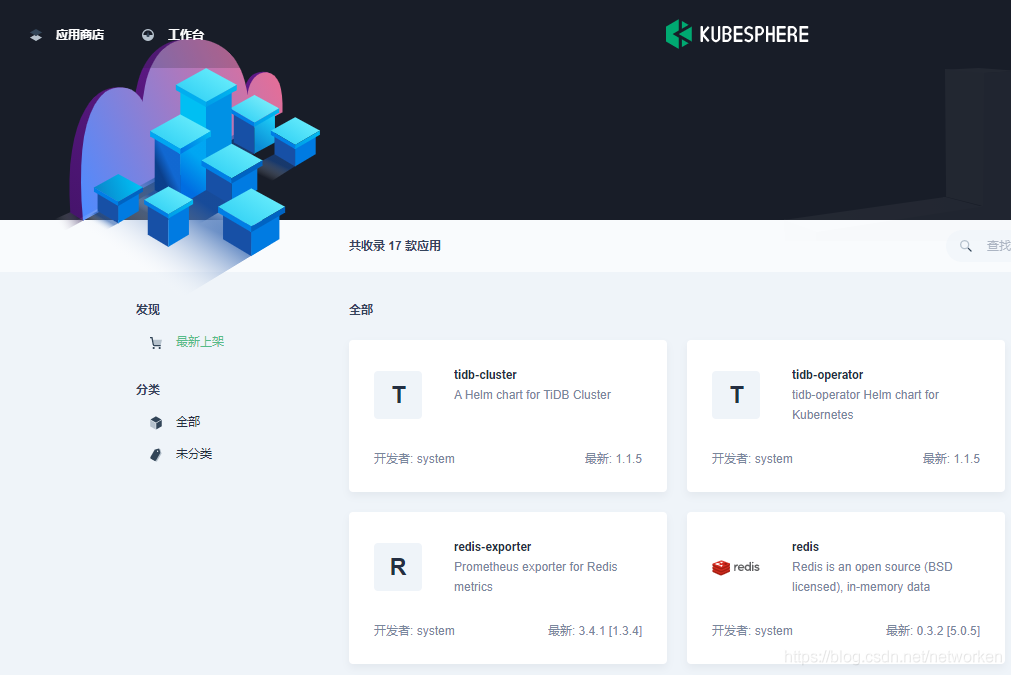

发布后点击左上角应用商店，在应用商店中即可看到上架的 tidb 应用：
kubesphere 运行流水线

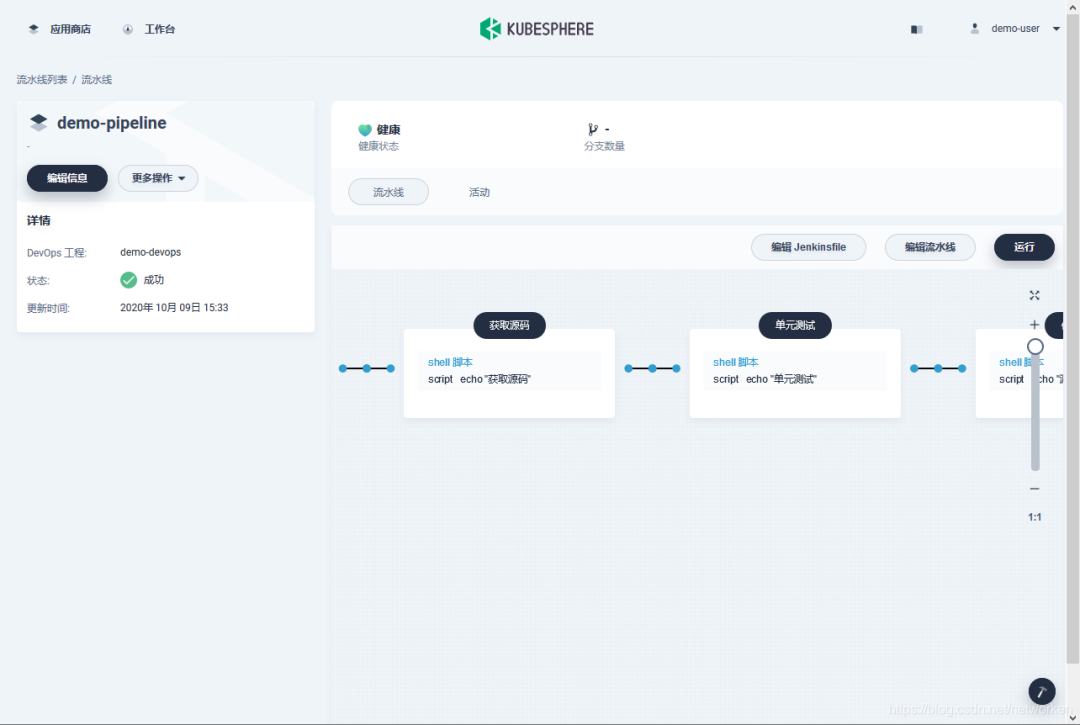

依然使用普通用户，点击工作台，devops 工程，创建 devops 工程，点击 devops 工程进入，创建流水线填写名称其他全部默认，点击创建，编辑 jenkinsfile，粘贴以下内容并运行
pipeline {
agent any
stages {
stage('获取源码') {
steps {
sh 'echo "获取源码"'
}
}
stage('单元测试') {
steps {
sh 'echo "单元测试"'
}
}
stage('代码扫描') {
steps {
sh 'echo "源代码扫描"'
}
}
stage('源码编译') {
steps {
sh 'echo "源码编译"'
}
}
stage('镜像构建') {
steps {
sh 'echo "docker镜像构建"'
}
}
stage('镜像推送') {
steps {
sh 'echo "推送镜像到harbor仓库"'
}
}
stage('应用部署') {
steps {
sh 'echo "部署应用到kubernetes集群"'
}
}
}
}
查看运行成功的流水线

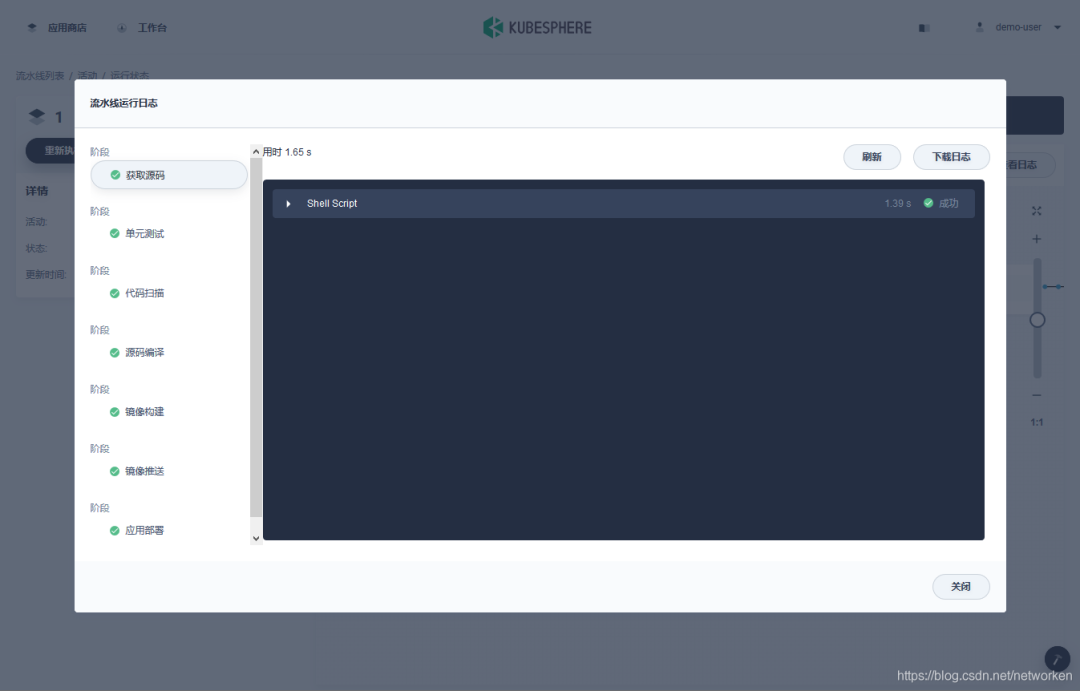

查看流水线运行日志
清理 kubesphere 集群
参考：https://kubesphere.com.cn/en/docs/installing-on-kubernetes/uninstalling/uninstalling-kubesphere-from-k8s/[7]
wget https://raw.githubusercontent.com/kubesphere/ks-installer/master/scripts/kubesphere-delete.sh
sh kubesphere-delete.sh
参考资料
[1]Sealos: https://sealyun.com[2]rook: https://rook.io/[3]KubeSphere: https://kubesphere.io[4]https://kubesphere.com.cn/en/docs/installing-on-kubernetes/: https://kubesphere.com.cn/en/docs/installing-on-kubernetes/[5]TiDB: https://pingcap.com/[6]https://github.com/pingcap/docs-tidb-operator/blob/master/zh/get-started.md: https://github.com/pingcap/docs-tidb-operator/blob/master/zh/get-started.md[7]https://kubesphere.com.cn/en/docs/installing-on-kubernetes/uninstalling/uninstalling-kubesphere-from-k8s/: https://kubesphere.com.cn/en/docs/installing-on-kubernetes/uninstalling/uninstalling-kubesphere-from-k8s/
